Transfer case problems are one of the most frequently misdiagnosed drivetrain issues in Chicago. Owners bring their truck in saying "my transmission is slipping" and it turns out the transmission is fine - the transfer case is failing. Understanding the difference saves you from expensive unnecessary repairs.
What Does a Transfer Case Do?
The transfer case sits between the transmission and the front and rear axles on 4WD and AWD vehicles. Its job is to split engine power between the front and rear axles. On part-time 4WD trucks (Silverado, F-150, Tacoma), the transfer case connects and disconnects the front axle. On full-time AWD vehicles (Subaru, Audi Quattro, Toyota AWD), it continuously distributes torque between axles.

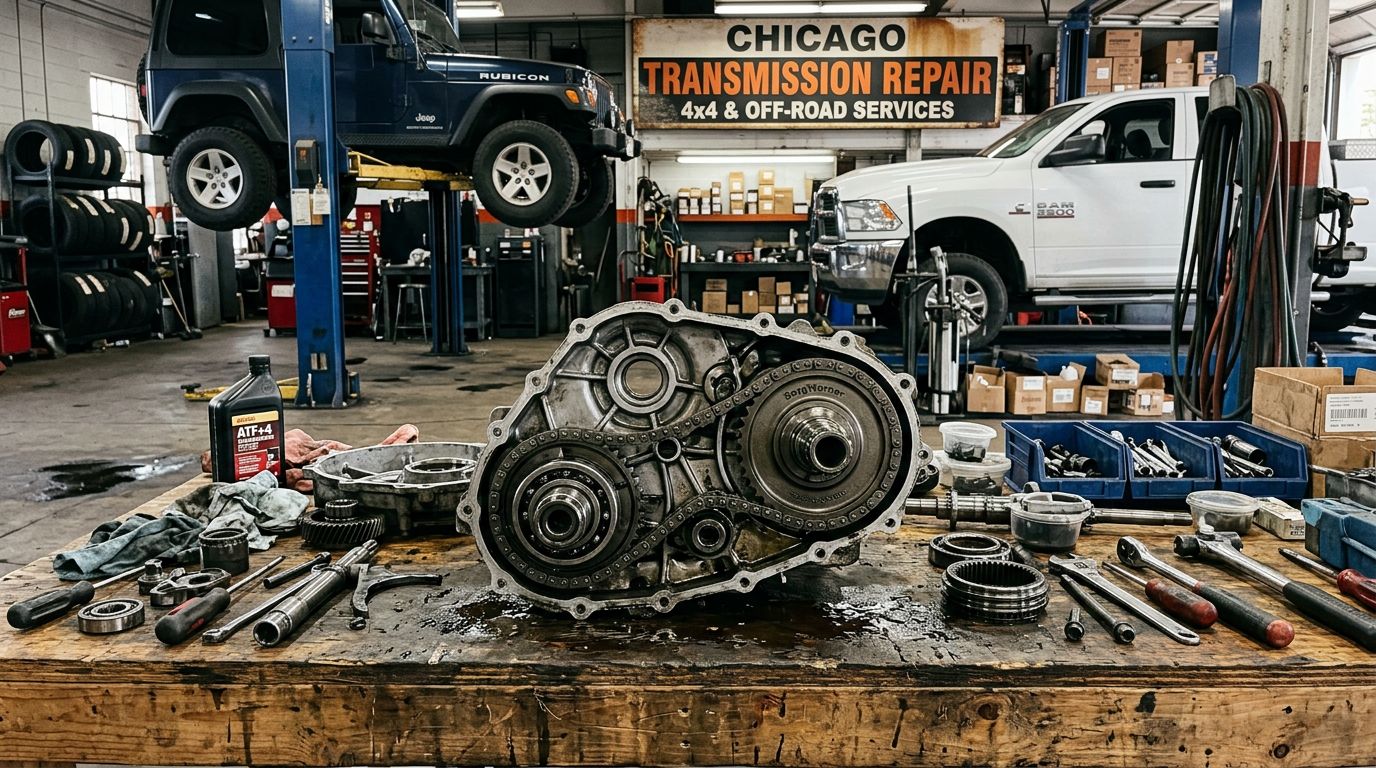

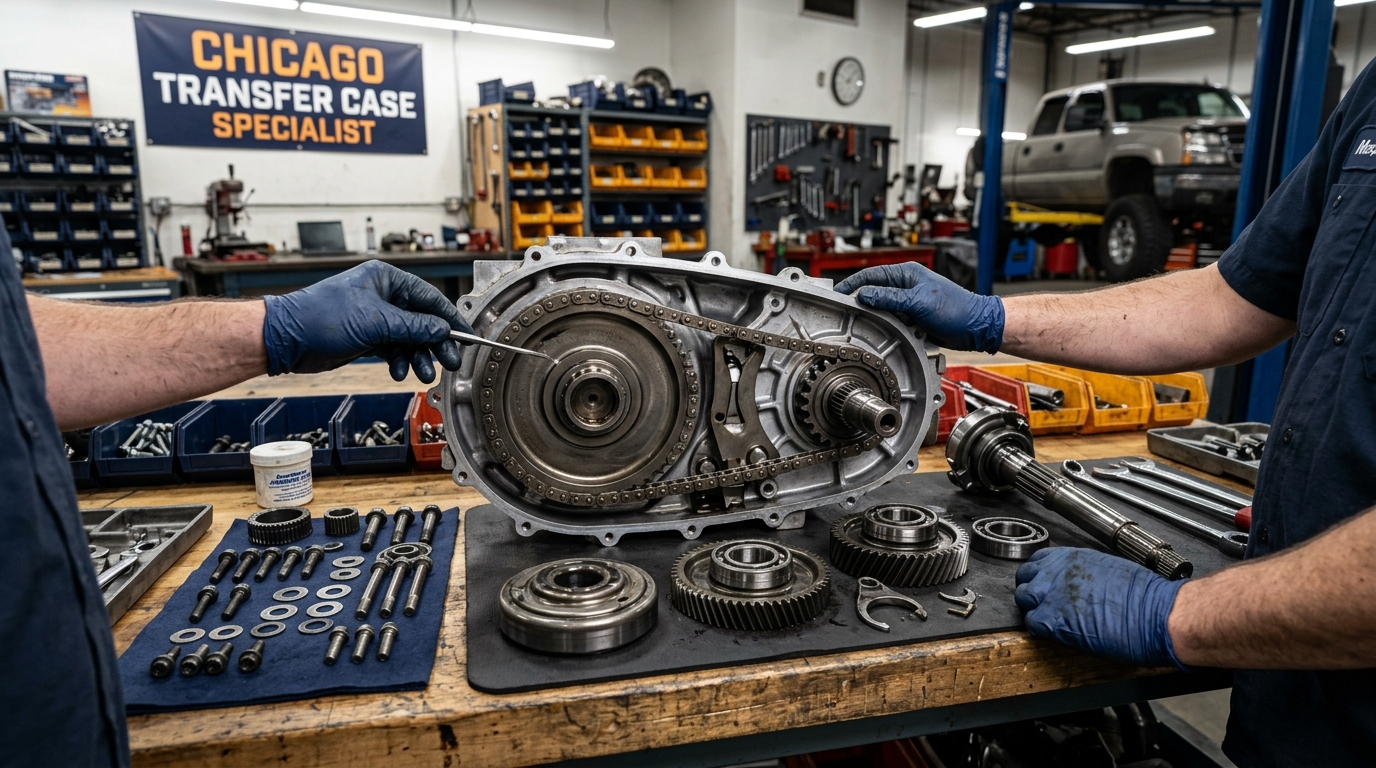

Most transfer cases use a chain drive (BorgWarner NV241, NV263) or gear drive to transfer power. The chain is the most common failure point.
Transfer Case vs. Transmission - Key Differences
Here's how to tell whether your symptoms are coming from the transmission or the transfer case:
Transfer Case Symptoms
- Clunking when engaging or disengaging 4WD - chain slack or worn clutch rings
- Difficulty switching between 2H, 4H, and 4L - encoder motor or mode fork failure
- Vibration at specific highway speeds - chain wear or output shaft imbalance
- 4WD warning light - encoder motor or 4WD switch fault
- Fluid leak from center of vehicle - transfer case output shaft seal
- Binding during turns in 4WD (part-time) - drivetrain windup - normal on pavement; abnormal if it occurs in 2WD
Transmission Symptoms
- Slipping between gears during normal acceleration
- Delayed engagement shifting from Park to Drive
- Harsh shifts - clunking when the transmission changes gears
- Transmission warning light with P07xx codes
Common Transfer Case Failures by Vehicle
GM Trucks (Silverado, Tahoe, Yukon) - NV261/NV263
Chain wear is the primary failure mode. The NV261 (1500 trucks) develops chain slack that causes a distinct clunking noise at highway speed and when engaging 4WD. Diagnosis: if the noise changes when switching between 2H and 4H, it's the transfer case. Chain replacement: quoted after diagnosis. Full rebuild: quoted after diagnosis.
Jeep Grand Cherokee - NV241
The NV241 chain stretches significantly on 2005 - 2010 Grand Cherokees, causing vibration and 4WD engagement problems. Very common - we see 5 - 8 NV241 chain services per month. Often done simultaneously with 45RFE/545RFE transmission service. Service: quoted after diagnosis.
Ford Explorer and F-150 - BorgWarner 44-05
The BorgWarner transfer case in Explorer develops mode fork wear and encoder motor failures. The encoder motor is the electric actuator that physically shifts the transfer case - when it fails, 4WD won't engage or won't disengage. Encoder motor replacement: quoted after diagnosis. Chain service: quoted after diagnosis.
AWD Crossovers (Escape, Equinox, RAV4) - PTU
Many AWD crossovers use a Power Transfer Unit (PTU) instead of a traditional transfer case. The PTU is a small, compact unit that often leaks fluid and is frequently neglected - there's no maintenance interval reminder in most owner's manuals. PTU failure is progressive and can cause complete AWD loss. PTU fluid service: quoted after diagnosis. PTU replacement: quoted after diagnosis.
Transfer Case Fluid - The Service Nobody Does
Transfer case fluid should be changed every 30,000 - 50,000 miles on 4WD trucks, and every 30,000 miles on AWD crossovers. The vast majority of transfer cases we service have never had a fluid change. Old fluid turns dark, loses lubrication properties, and accelerates chain and bearing wear. Our transfer case fluid service is - 149 - cheap insurance.
Repair Pricing in Chicago
- Transfer case fluid service: quoted after diagnosis
- Encoder motor replacement: quoted after diagnosis
- Chain and sprocket service: quoted after diagnosis
- Transfer case rebuild: quoted after diagnosis
- Transfer case replacement (used): quoted after diagnosis
- Transfer case replacement (reman): quoted after diagnosis
- PTU service (crossovers): quoted after diagnosis fluid, - 2,200 replacement
See our transfer case service page for more detail. Free diagnostic to determine transfer case vs. transmission: schedule here or call (312) 626-8759.
