ZF 8HP55 8-Speed Automatic Transmission (BMW) · BMW / MINI · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
2012–2019 BMW 3 Series (F30 328i/330i/340i), 2012–2020 BMW 5 Series (F10 528i/530i/540i), 2013–2019 BMW 4 Series (F32/F36), 2010–2018 BMW X3/X4/X5/X6 (6-cylinder)
| Configuration | 8-speed automatic RWD/xDrive transmission |
|---|---|
| Gear Ratios | 1st 4.71:1 · 2nd 3.14:1 · 3rd 2.11:1 · 4th 1.67:1 · 5th 1.29:1 · 6th 1.00:1 · 7th 0.84:1 · 8th 0.67:1 · Rev 3.40:1 |
| Fluid Type | ZF LifeGuardFluid 8 (= Mopar ZF+8) |
| Fluid Capacity | 9.8 qts total, 4.5 qts service refill |
The 8HP55 mechatronic unit — combining valve body and electronics — is the primary failure mode. Wiring harness deterioration causes limp mode. All ZF 8HP platforms share this failure.
Symptoms: Limp mode (3rd only), DTC P0750–P0795 range, harsh shifts, MIL on
TCC shudder develops when ZF LifeGuardFluid 8 is neglected. The 8HP55 is particularly susceptible in xDrive applications.
Symptoms: Vibration at 40–60 mph, DTC P0740, shudder reduces at WOT or with fresh ZF LGF8
Hydraulic pump wear causes line pressure drop and soft shifts across all gears on units above 150,000 miles.
Symptoms: Soft or inconsistent shifts, slip under hard acceleration, transmission hunting on inclines

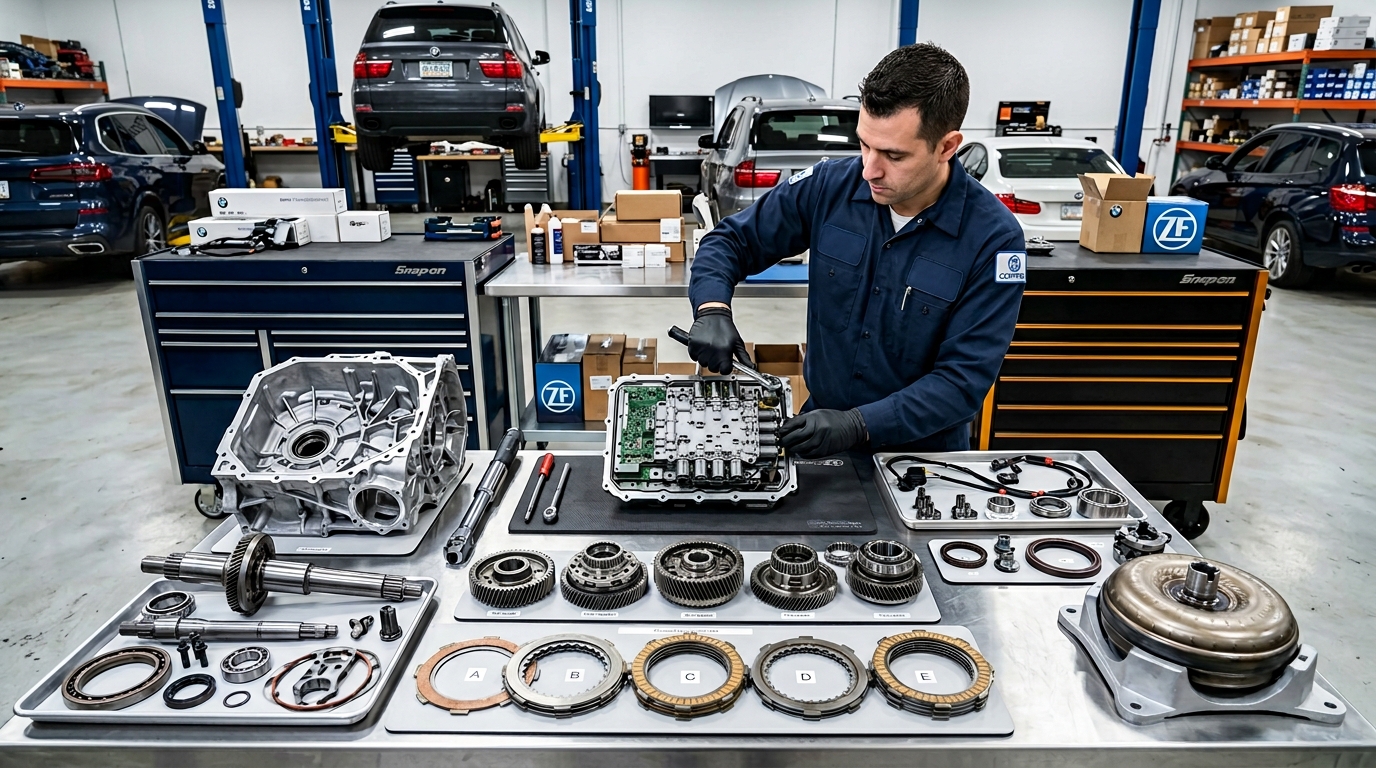

8HP55 rebuild replaces mechatronic unit, all clutch packs, torque converter, and all seals. ZF LifeGuardFluid 8 used throughout. All bearings and thrust washers renewed.
ZF LifeGuardFluid 8 every 40,000 miles — BMW's lifetime designation is not appropriate for real-world longevity. Note: ZF LifeGuardFluid 8 is the same spec as Mopar ZF+8 — both are acceptable for BMW applications using this transmission.
F30 3 Series, F10 5 Series, F32/F36 4 Series, and xDrive X3/X4/X5/X6 with 6-cylinder engines from 2010–2020.
ZF LifeGuardFluid 8 — also equivalent to Mopar ZF+8 used in FCA vehicles with the same transmission family.
A full rebuild ranges $2,400–$3,100 at Chicago Transmission.
Every 40,000 miles. BMW calls it lifetime fluid, but regular changes prevent mechatronic failure and extend transmission life significantly.
Yes — it's widely regarded as one of the best modern automatics. The mechatronic harness is the primary weak point, and regular fluid changes mitigate this.
Free diagnostic, written estimate, lifetime warranty. Chicago's ZF 8HP55 rebuild specialists since 1987.
