GM 4L60E 4-Speed Electronic Automatic · GM/Chevrolet/GMC/Cadillac/Buick · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
1993–2013 Chevrolet Silverado/Tahoe/Suburban/Blazer; 1993–2013 GMC Sierra/Yukon; 1993–2002 Camaro/Firebird; 1996–2013 Chevrolet Express/GMC Savana vans; behind 4.3L/4.8L/5.3L/6.0L V8 engines
| Configuration | 4-speed automatic with overdrive and electronic shift control |
|---|---|
| Gear Ratios | 1st 3.06:1 · 2nd 1.63:1 · 3rd 1.00:1 · 4th 0.70:1 · Rev 2.29:1 |
| Fluid Type | Dexron VI ATF |
| Fluid Capacity | 11.0 qts total, 5.5 qts service refill |
The most common 4L60E failure — the OD clutch pack is undersized for sustained highway towing or high-horsepower applications. Stock 4-plate OD pack wears out at 100k–150k miles in truck applications.
Symptoms: Slip in 4th (OD) gear; drops from OD on hills; works fine in 1st, 2nd, 3rd
The 1-2 accumulator piston O-rings harden and crack with age, causing ATF to bypass the piston. This causes a harsh, banging 1-2 upshift.
Symptoms: Harsh bang or clunk on 1-2 upshift; otherwise shifts normally; worsens when cold
The 4L60E sunshell (4th gear ring gear carrier) has a known snap ring groove design weakness. High-torque events can shear the snap ring, causing sudden loss of 3rd and 4th gears.
Symptoms: Sudden loss of 3rd and 4th gear with metallic clunk; 1st and 2nd still work; often catastrophic

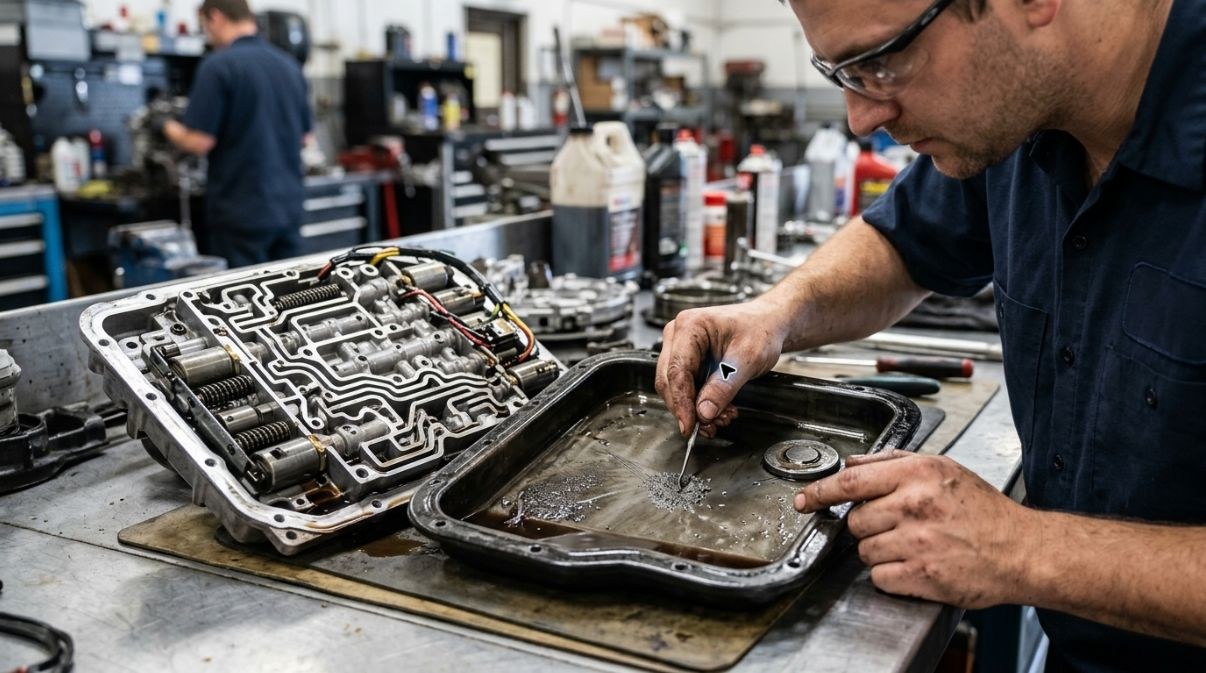

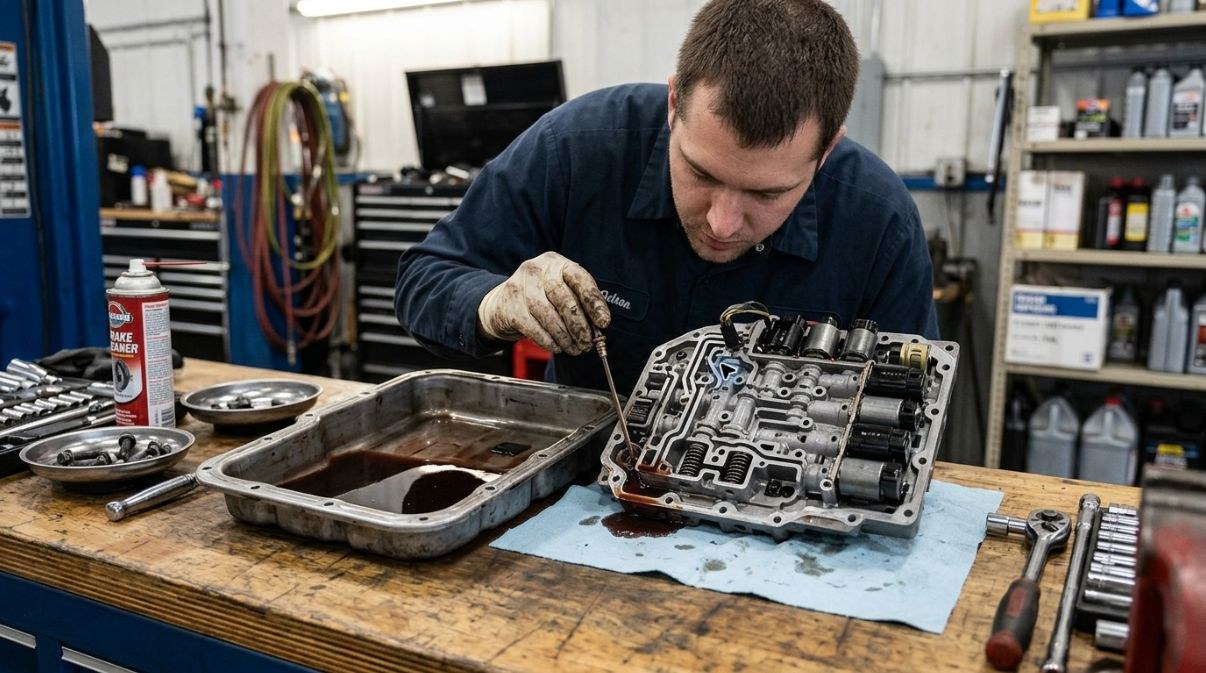

Full disassembly. OD clutch pack upgraded to 5-plate or 6-plate heavy-duty kit. Sunshell snap ring groove inspected — upgraded Corvette sunshell installed if groove is worn or in performance builds. 1-2 accumulator piston replaced. All clutch packs replaced. Valve body rebuilt. Full Transtec kit.
Dexron VI every 30,000–40,000 miles. The OD clutch upgrade is the single best preventive measure — we recommend it with every rebuild regardless of symptom. Check the sunshell snap ring at 100k miles in performance applications.
OD (4th gear) clutch pack failure — the most common 4L60E issue. The 4-plate OD clutch pack is undersized for sustained towing. We upgrade to a 5- or 6-plate kit in every rebuild.
The sunshell is the 4th-gear ring gear carrier. It has a snap ring groove that can shear under high torque, suddenly eliminating 3rd and 4th gears. We install the stronger Corvette Z06 sunshell on all performance 4L60E rebuilds.
It cushions the 1-2 upshift by providing a hydraulic buffer. When the O-rings fail, fluid bypasses and the 1-2 shift becomes a harsh bang. O-ring replacement (part of any rebuild) fixes it immediately.
100,000–150,000 miles stock. With an OD clutch upgrade and Dexron VI service, 200,000+ miles is achievable.
The 4L65E is a heavy-duty variant with a 5-pinion front planetary (vs 4-pinion in 4L60E) and stronger clutch packs. Used in higher-torque applications like the 6.0L V8.
Free diagnostic, written estimate, lifetime warranty. Chicago's 4L60E rebuild specialists since 1987.
