GM 4L65E Heavy-Duty 4-Speed Electronic Automatic · GM/Chevrolet/GMC/Cadillac/Buick · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
2001–2006 Chevrolet Corvette; 2002–2007 Cadillac Escalade; 2002–2007 Chevrolet/GMC heavy-duty trucks; behind 6.0L and 8.1L V8 engines requiring more torque capacity than 4L60E
| Configuration | 4-speed automatic with overdrive — heavy-duty 4L60E variant |
|---|---|
| Gear Ratios | 1st 3.06:1 · 2nd 1.63:1 · 3rd 1.00:1 · 4th 0.70:1 · Rev 2.29:1 |
| Fluid Type | Dexron VI ATF |
| Fluid Capacity | 11.0 qts total, 5.5 qts service refill |
The 4L65E has a larger OD clutch pack than the 4L60E but still experiences wear in high-torque towing applications.
Symptoms: Slip in 4th gear under trailer load; drops from OD on highway grades
High-torque converter lockup loads in Corvette and heavy truck applications cause TCC wear and shudder.
Symptoms: Shudder at 40–60 mph under light throttle; TCC cycling on/off

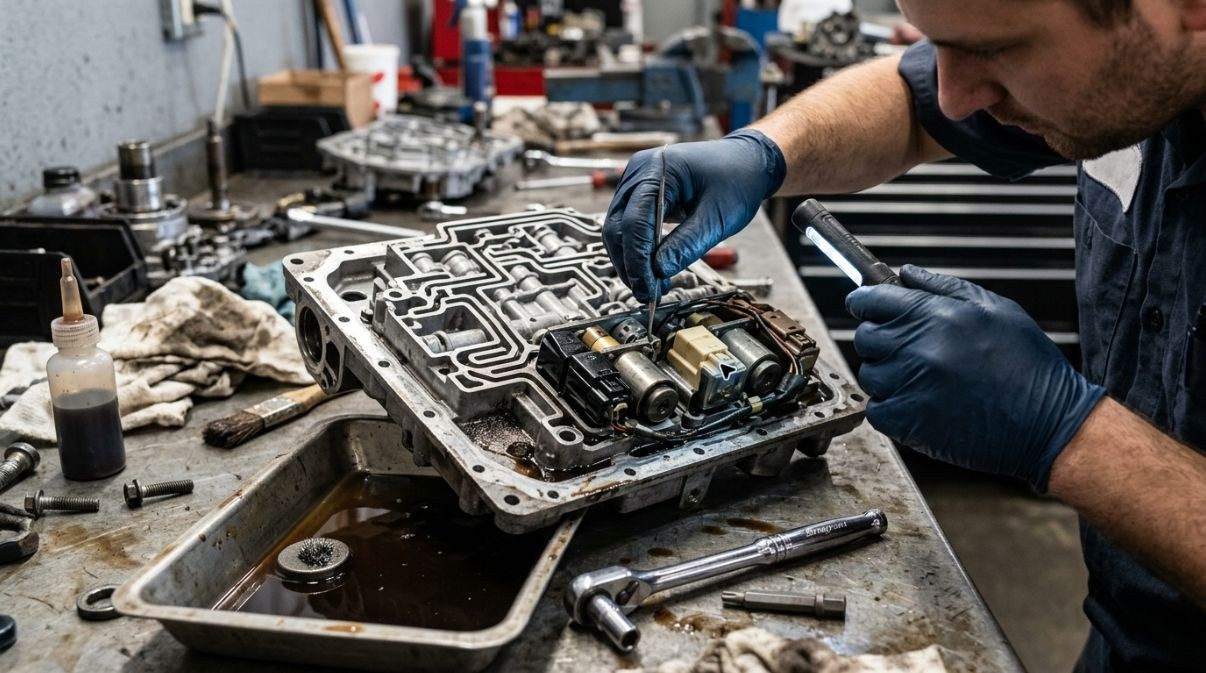

The 4L65E can develop 3-4 shift harshness from valve body wear or solenoid degradation.
Symptoms: Bang or clunk on 3-4 upshift; harsh engagement; P0758 solenoid codes

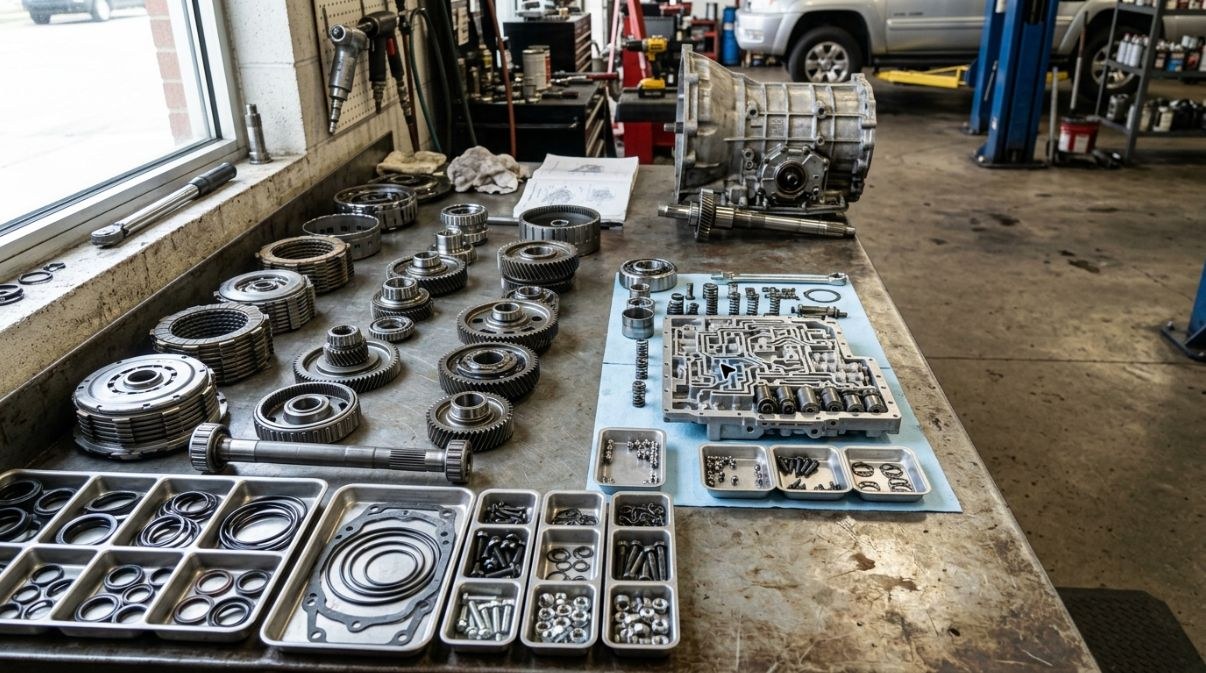

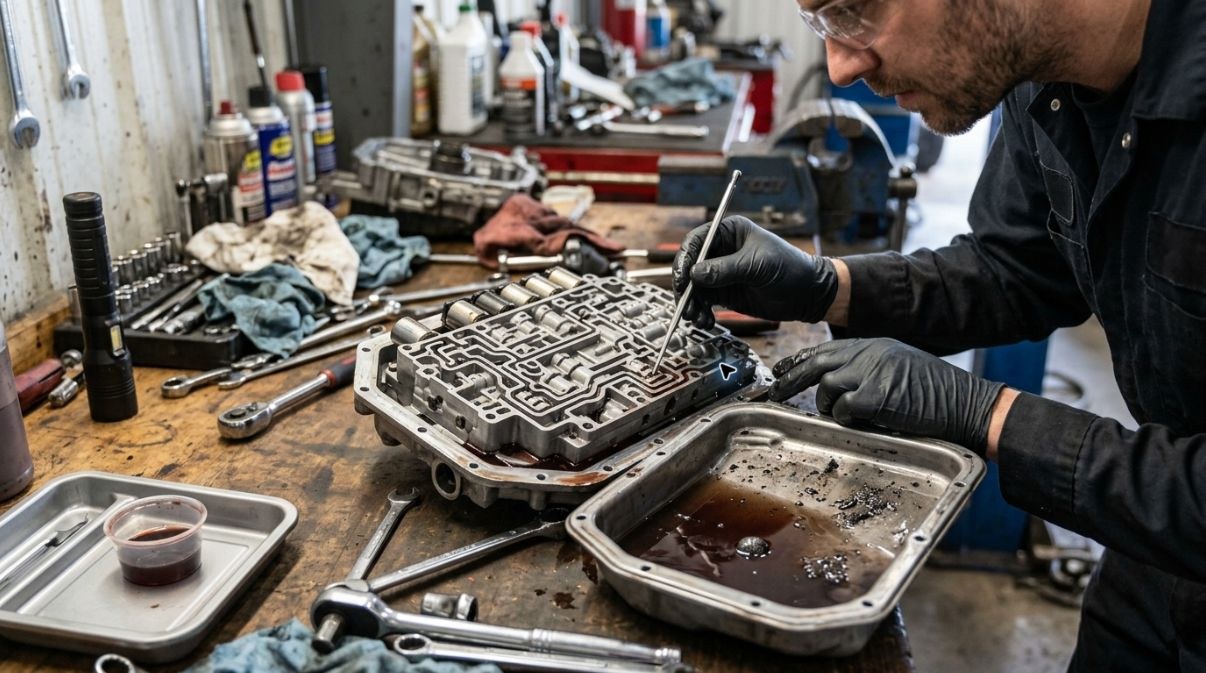

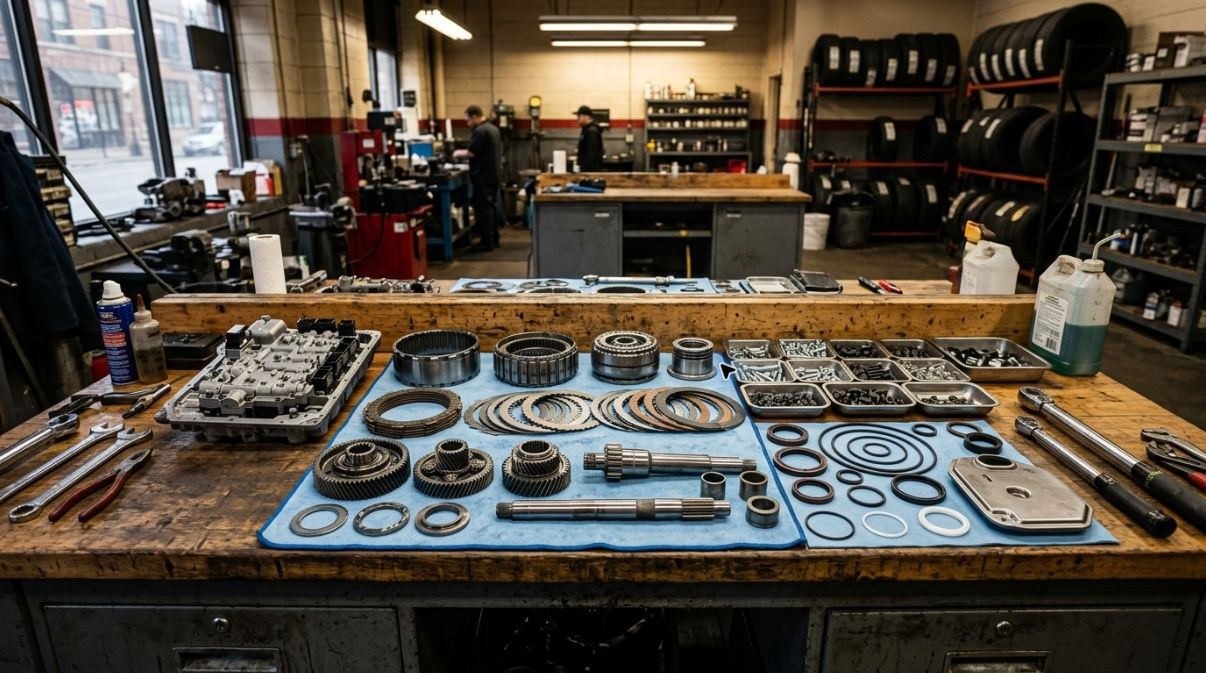

Full disassembly. OD clutch pack replaced. TCC inspected. 5-pinion front planetary inspected for cracked spider gears. All clutch packs replaced. Valve body rebuilt. Full Transtec soft parts kit.
Dexron VI every 30,000 miles. Corvette 4L65E: service every 25,000 miles due to performance driving loads.
The 4L65E uses a 5-pinion front planetary (stronger than the 4L60E's 4-pinion), larger clutch pack capacity, and a stronger input shaft. It's rated for approximately 380 lb-ft torque vs 360 lb-ft for the 4L60E.
Corvette TCC shudder at 40–55 mph is usually the torque converter lockup clutch. Dexron VI fluid flush often resolves it; persistent shudder requires converter replacement.
Many parts interchange, but the planetary carriers are different — don't mix them. Input shafts and output shafts also differ between applications.
$1,600–2,400. 2–3 day turnaround.
No — the 6L80 and 8L90 are significantly stronger. The 4L65E is the last of the 4-speed platform, replaced by 6-speed units in 2006+.
Free diagnostic, written estimate, lifetime warranty. Chicago's 4L65E rebuild specialists since 1987.
