Ford 4R75W Heavy-Duty 4-Speed Overdrive · Ford/Lincoln · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
2003–2008 Ford F-150, Expedition; 2003–2011 Lincoln Town Car; heavier-duty applications requiring more torque capacity than 4R70W
| Configuration | 4-speed automatic with overdrive — heavy-duty variant of 4R70W |
|---|---|
| Gear Ratios | 1st 2.84:1 · 2nd 1.55:1 · 3rd 1.00:1 · 4th 0.70:1 · Rev 2.32:1 |
| Fluid Type | Mercon V ATF |
| Fluid Capacity | 14.0 qts total, 6.0 qts service refill |
Same EPC wear pattern as 4R70W, but the consequences are more severe in truck applications with towing loads.
Symptoms: Slip under load; P0745; delayed engagement when hot
The 4R75W has a stronger input shaft than the 4R70W, but maximum towing capacity applications can cause shaft fatigue in 200k+ mile units.
Symptoms: Sudden neutral in all gears; input shaft shear confirmed on teardown
Towing in overdrive at high ambient temperatures accelerates OD clutch pack wear in the 4R75W.
Symptoms: Slipping in 4th (OD) under load; drops out of OD on hills; works fine in 1-3

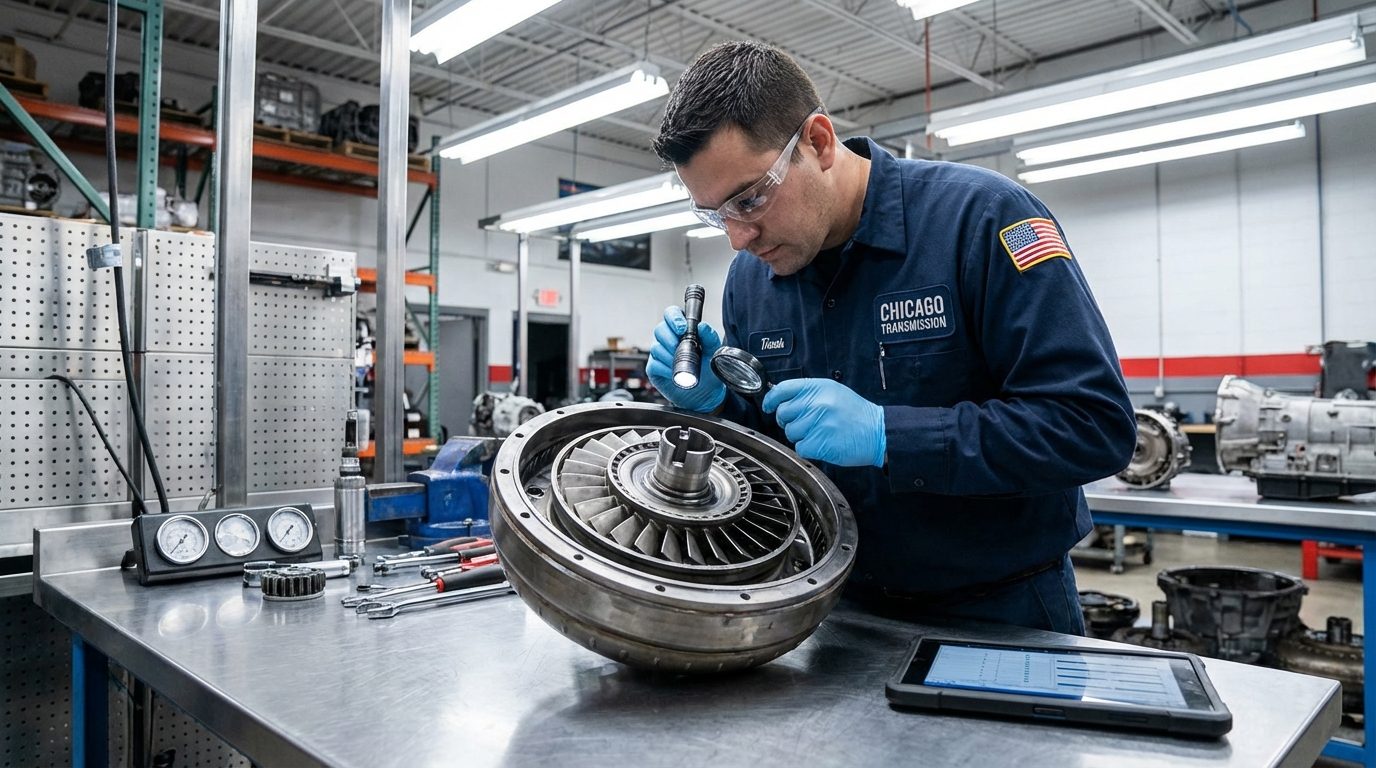

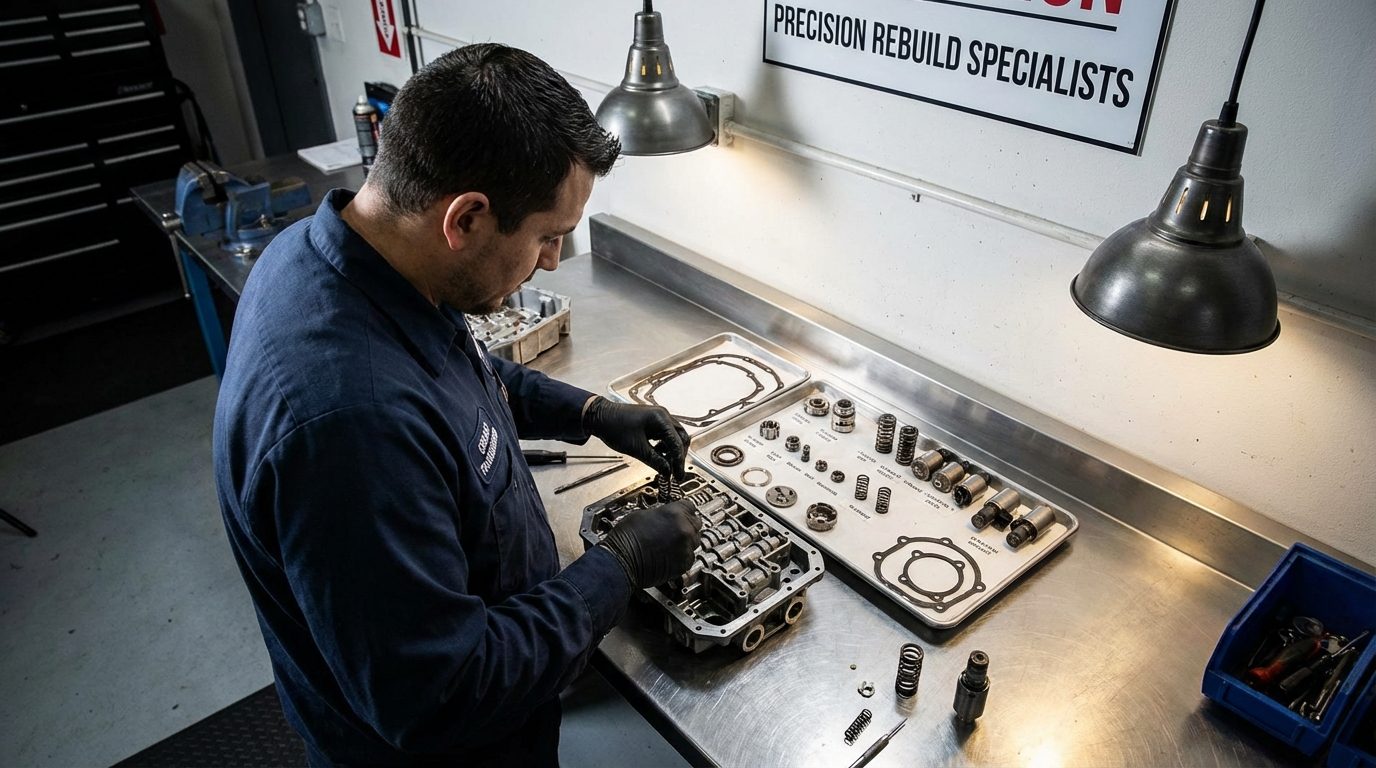

Same procedure as 4R70W with heavy-duty upgrades. We use 5-plate OD clutch kits for towing applications. EPC solenoid replaced. Input shaft inspected. Full soft parts and converter service.
Mercon V every 30,000 miles — more frequently (25,000) if towing. Consider a deep-sump pan and auxiliary cooler for towing applications. Check OD clutch condition at each fluid service.
The 4R75W has a stronger input shaft, heavier-duty clutch packs, and higher torque rating. It was designed for truck/SUV towing applications. The 4R70W is the performance car variant.
Physically it fits in the same tunnel, but it's heavier and the gear ratios are the same. Most Mustang builders prefer a 4R70W or upgrade to the 4R80E for extreme power applications.
Likely yes. Overdrive clutch slip under towing load is the most common 4R75W failure. We rebuild with a 5-plate OD clutch kit that eliminates this issue.
Mercon V ATF. Not interchangeable with plain Mercon or Mercon LV.
$1,700–2,400 depending on damage. Towing-duty rebuilds with the 5-plate OD kit are at the higher end of the range.
Free diagnostic, written estimate, lifetime warranty. Chicago's 4R75W rebuild specialists since 1987.
