GM 6T75 6-Speed AWD/FWD Automatic · GM/Chevrolet/GMC/Cadillac/Buick · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
2008–2019 Chevrolet Traverse (AWD, 3.6L high output); 2008–2017 GMC Acadia (AWD); 2008–2017 Buick Enclave (AWD); 2009–2014 Cadillac SRX; heaviest-duty front-drive 6T-family
| Configuration | 6-speed AWD transaxle — heavy-duty large crossover variant |
|---|---|
| Gear Ratios | 1st 4.48:1 · 2nd 2.87:1 · 3rd 1.84:1 · 4th 1.41:1 · 5th 1.00:1 · 6th 0.74:1 · Rev 3.82:1 |
| Fluid Type | Dexron VI ATF |
| Fluid Capacity | 10.5 qts total, 6.0 qts service refill |
Same SRV bore weakness as the rest of the 6T family. AWD load increases bore wear rate.
Symptoms: 2nd-gear slip under AWD load; harsh 1-2 shift
Same PTU failure mode as 6T70 but under heavier loads in AWD applications.
Symptoms: PTU fluid leak; AWD shudder; grinding from PTU
High-mileage AWD applications develop differential carrier bearing noise from the combined FWD/AWD loads.
Symptoms: Growl from transaxle area increasing with speed; worse on turns

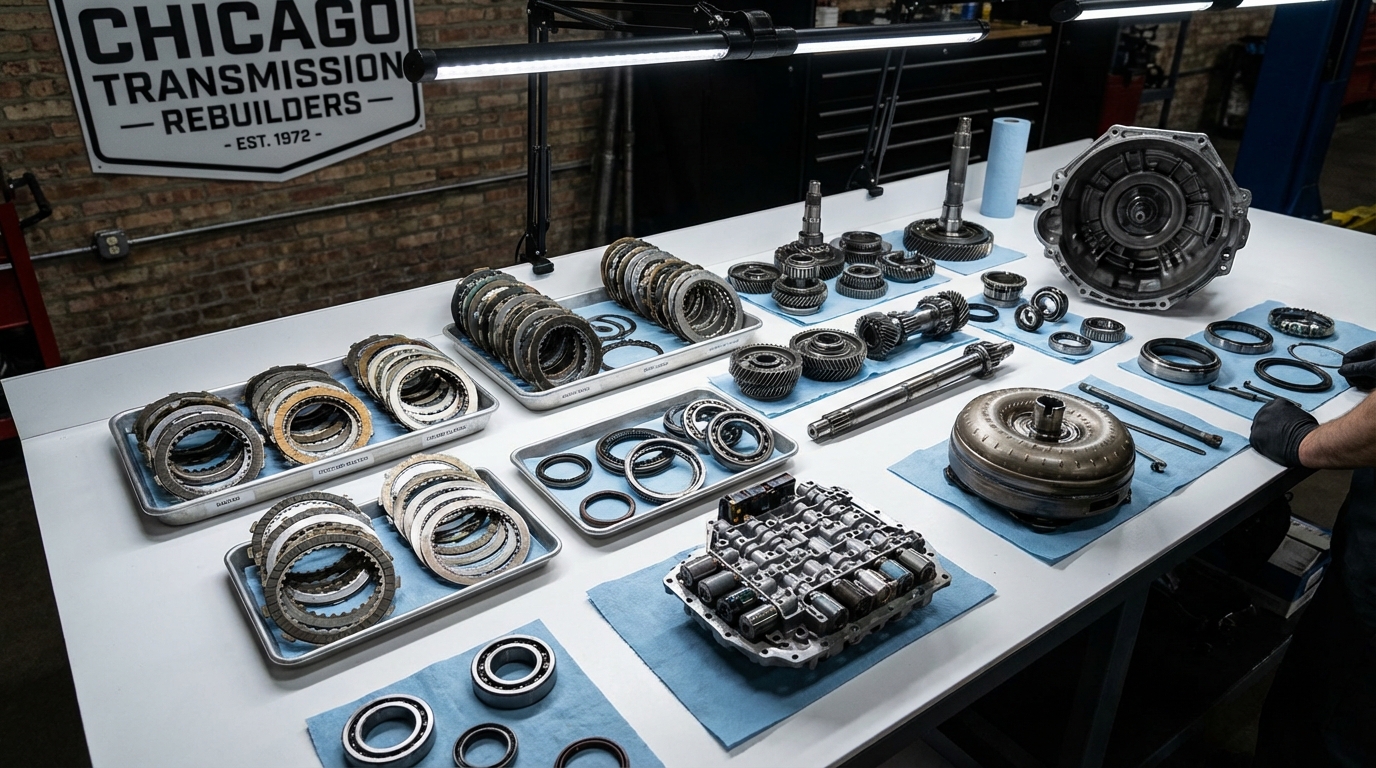

SRV bore kit. PTU seals replaced. Differential carrier bearings replaced. All clutch packs replaced. Solenoid body replaced. Full soft parts. Valve body rebuilt.
Dexron VI every 40,000 miles. PTU fluid every 45,000 miles. AWD applications require diligent service — neglected fluid destroys both the transaxle and the PTU.
The 6T75 has higher torque capacity for heavier AWD applications (Enclave, higher-output Traverse). Stronger planetary gears and clutch packs than the 6T70.
Could be either — AWD shudder on takeoff often points to the rear coupling or PTU. We diagnose both before recommending a repair.
$1,900–2,700.
Dexron VI in the transaxle.
2–3 days.
Free diagnostic, written estimate, lifetime warranty. Chicago's 6T75 rebuild specialists since 1987.
