Nissan RE0F08 CVT (Jatco JF011E) · Nissan / Infiniti · Expert rebuild service since 1987. Lifetime warranty. Free diagnostic.
2006–2012 Nissan Altima (2.5L/3.5L), 2007–2012 Nissan Sentra (2.0L), 2007–2012 Nissan Maxima
| Configuration | CVT — continuously variable ratio |
|---|---|
| Gear Ratios | Ratio range approximately 2.35:1 (low) to 0.39:1 (high) · Rev 2.06:1 |
| Fluid Type | Nissan NS-2 CVT Fluid |
| Fluid Capacity | 7.4 qts total, 3.4 qts service refill |
The RE0F08 is among the highest-failure-rate CVTs in the industry. The belt wears rapidly under the Altima 3.5L V6's torque, especially when fluid intervals are exceeded.
Symptoms: Whining, loss of acceleration, DTC P0868, vehicle immobile in Drive, burning smell
The valve body develops internal bypass channels from wear, reducing belt clamping pressure. This accelerates belt slip and wear.
Symptoms: Hesitation under acceleration, RPM spike without vehicle speed increase, DTC P0776
Output shaft bearings wear on high-mileage units, producing noise and eventually damaging the pulley bore.
Symptoms: Growling proportional to vehicle speed, vibration through floor, noise worst under load

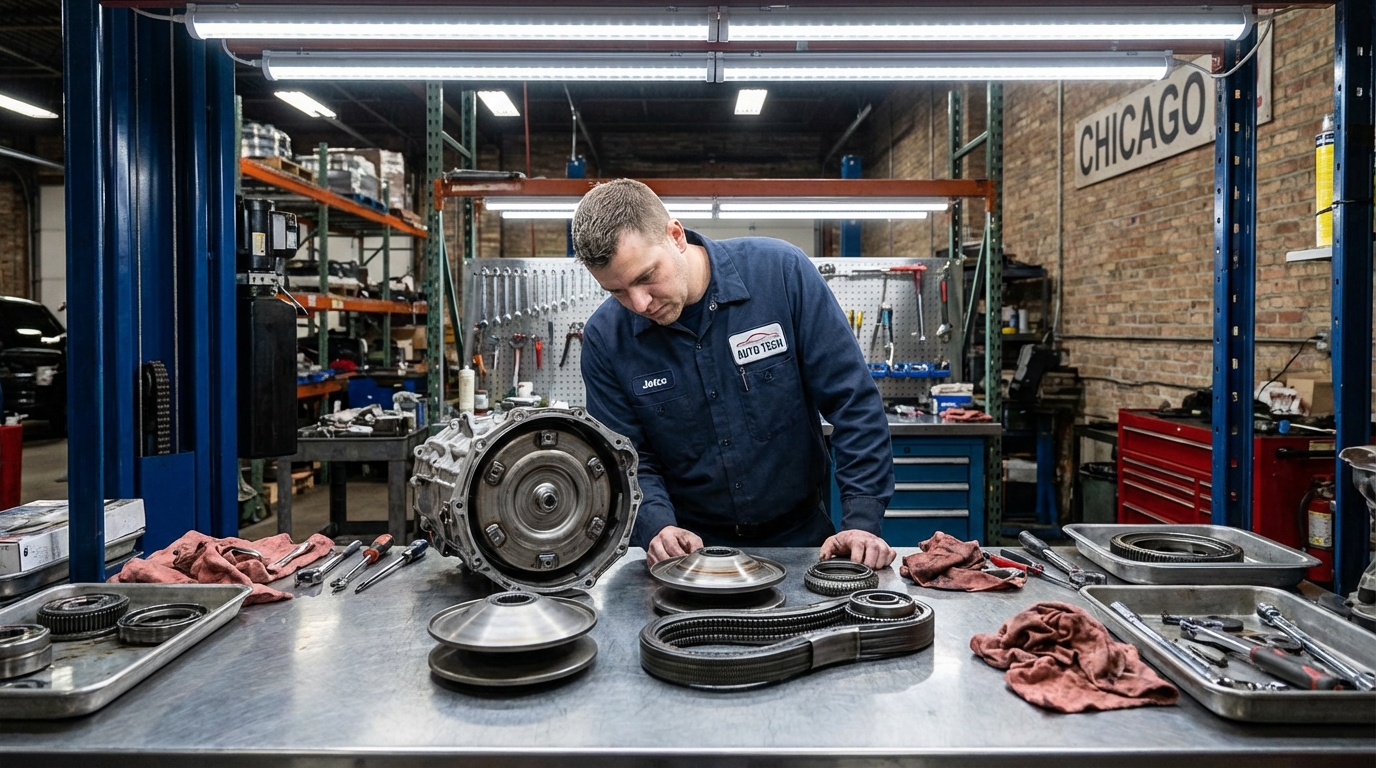

RE0F08 CVT rebuild replaces belt, primary and secondary pulley assemblies, valve body (sometimes replaced entirely), and all seals. Secondary shaft bearing replaced. NS-2 fluid used throughout.
Nissan NS-2 CVT fluid every 30,000 miles — no exceptions. The RE0F08 Altima CVT has one of the worst failure reputations in the industry. Fluid is the single most important maintenance item.
The 2006–2012 Altima CVT (RE0F08) has a poor reliability record. Regular NS-2 fluid changes every 30,000 miles are essential to maximize lifespan.
A full RE0F08 rebuild ranges $2,400–$3,100 at Chicago Transmission.
With proper NS-2 fluid maintenance, many reach 150,000 miles. Without proper service, failures at 60,000–100,000 miles are common.
Absolutely not. Only Nissan NS-2 CVT fluid is compatible. Using Dexron will destroy the unit quickly.
If the car is otherwise solid, yes — rebuilding is significantly cheaper than a new or remanufactured CVT.
Free diagnostic, written estimate, lifetime warranty. Chicago's RE0F08A/B rebuild specialists since 1987.
