Finding fluid under your car is always worth investigating — but not all leaks are equally urgent. A transmission fluid leak can range from a slow pan gasket seep (fix within a month) to a front pump seal failure that can destroy the transmission in a single drive if left unchecked. Here's how to identify what you have.
Identify the Fluid by Color
- Bright red, thin, slightly sweet smell: Fresh ATF — transmission is leaking and the fluid is still in good condition
- Dark reddish-brown, thicker: Used ATF — transmission is leaking but fluid is degraded; may indicate the leak has been ongoing
- Dark brown or black, burnt smell: Very old or overheated ATF — the transmission may have been running low for some time
- Clear or light yellow: Power steering fluid, not ATF (both are hydraulic fluids and can look similar when fresh)
Common Leak Sources and Their Urgency
Pan Gasket — Low Urgency
The transmission pan gasket seals the bottom of the transmission where the pan attaches. Pan gasket leaks are typically slow seeps rather than active drips and are the most common ATF leak source. You'll see a patch of staining under the center of the vehicle. Cost to fix: $150–$300 including a new gasket and fluid refill.
Cooler Lines — Moderate Urgency
The transmission cooler lines run from the transmission to the radiator (where the built-in cooler is) or to an auxiliary cooler. These steel or rubber lines corrode over time — especially in Chicago, where road salt accelerates rust. A cooler line failure can produce a fast, high-volume leak. Inspect for drips along the transmission-to-radiator routing. Cost: $150–$400.
Rear Output Shaft Seal — Low to Moderate Urgency
On RWD and 4WD vehicles, the rear output shaft seal keeps fluid from leaking out where the driveshaft connects to the transmission. Slow leak, usually caught late because it drips from the back of the transmission tunnel. Cost: $200–$450.
Front Pump Seal / Torque Converter Seal — High Urgency
The front pump seal sits at the front of the transmission where the torque converter neck enters. A leaking front pump seal allows ATF to leak into the bellhousing area and can contaminate the torque converter or, on manual transmissions, the clutch. More importantly, a fast front pump seal leak can drop fluid level quickly. Cost: $300–$600 — requires transmission removal on most vehicles.
Axle Seals (FWD/AWD) — Moderate Urgency
On FWD and AWD vehicles, the CV axles pass through the transaxle through axle seals. When these seals fail, ATF leaks outward along the axle shaft. You'll see a wet, oily residue on the inner face of the wheel. Cost: $150–$350 per side.
Rear Main Seal — Moderate Urgency
Technically an engine seal, but leaks appear on the transmission bellhousing and are often initially assumed to be a transmission leak. See our rear main seal cost guide for full details.
What to Do Right Now
- Check your transmission fluid level on the dipstick (if your vehicle has one — many newer vehicles don't)
- Note where the fluid is puddling: center of the car = pan; toward the front = front pump; toward the wheels = axle seals
- If the puddle is large or growing fast, don't drive until the leak is identified
- Top off fluid if you're low, but don't drive far — find the source first

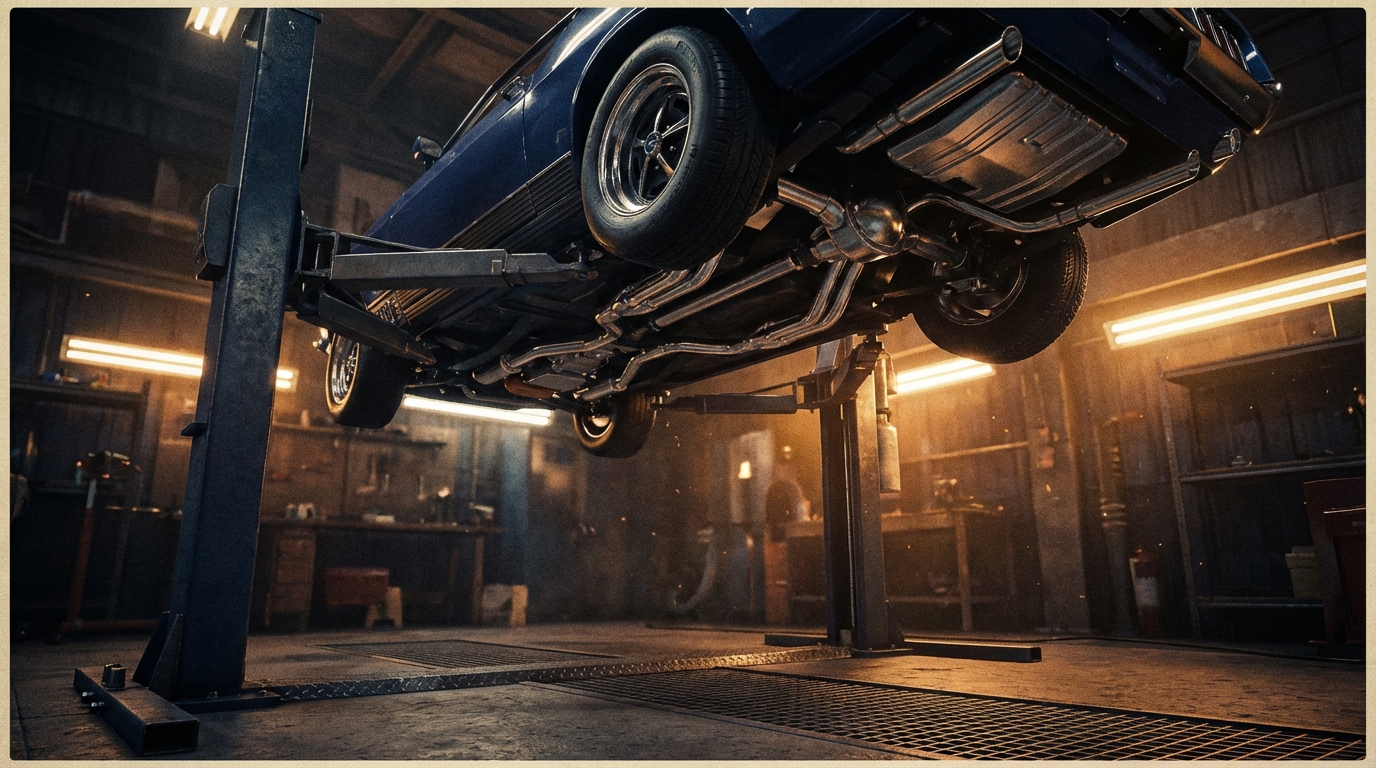

Stop in at 2450 N Lincoln Ave or call (312) 452-5637. We'll put it on the lift, identify the source, and give you a written estimate — no charge for the inspection.
