The 2019 Ford F-150 comes with the 10R80 — a 10-speed automatic co-developed by Ford and GM that Ford uses in their most important vehicle. The 10R80 is capable and efficient under normal conditions, but it has documented problems that F-150 owners in Chicago deal with regularly, especially as these trucks age past 60,000–80,000 miles.
The 10R80: What Makes It Different
Ten forward gears means the engine stays in a very narrow efficiency band across a wide speed range — better fuel economy and lower RPM on the highway. But more gears means tighter tolerances on clutch pack timing and solenoid response. The 10R80's programming has been revised repeatedly via Ford TSBs since its introduction, which tells you Ford has been chasing shift quality issues from the beginning.
Known 2019 F-150 10R80 Problems
Shudder at Light Throttle (TCC Shudder)

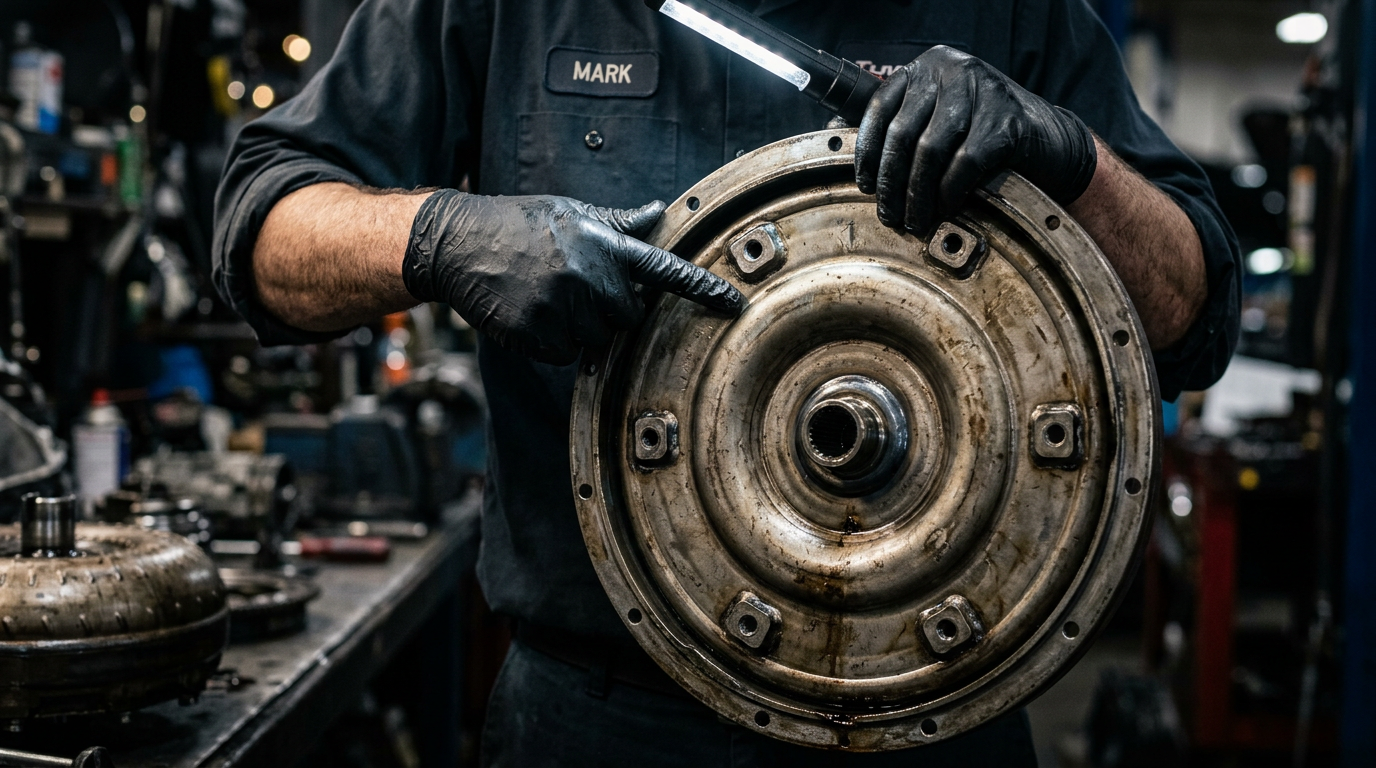

The most common complaint, particularly at 40–55 mph under light acceleration: a vibration that feels like driving over rumble strips. This is torque converter clutch (TCC) shudder — the lockup clutch engaging and releasing rapidly instead of locking cleanly. Ford has addressed this through multiple PCM/TCM software updates. Some 2019 trucks respond completely to the update; others have mechanical TCC wear that requires converter replacement.
Cost: TCM update $150–$300; converter replacement $700–$1,200 installed.
Harsh 1-2 Shift ("Clunk" or Jerk)
A sharp, mechanical shift from first to second — sometimes called a "clunk" — is another documented 10R80 behavior. Ford TSBs address this with PCM calibration changes and in some cases a pressure control solenoid replacement. If the TSB calibration doesn't hold, the solenoid is the next step.
Cost: $400–$800 for pressure control solenoid work.
Delayed Engagement or Hesitation
Some 2019 F-150 owners report a 1–3 second delay when shifting from park to drive — particularly when the truck is cold. This can be fluid viscosity (the 10R80 uses Mercon ULV, a very low-viscosity fluid), or it can indicate developing pressure sensor or pump issues.
Hunting Between Gears at Highway Speed
The 10-speed's aggressive downshift logic can cause it to cycle between gears under sustained moderate throttle on the highway. Some of this is by design (efficiency optimization), but excessive hunting indicates a transmission control issue or solenoid wear.
Repair Cost Breakdown for 2019 F-150 in Chicago
- PCM/TCM calibration update: $150–$300
- Mercon ULV fluid service: $120–$180 (uses expensive factory-spec fluid)
- Shift solenoid replacement: $500–$950
- Torque converter replacement: $700–$1,200
- Valve body service or replacement: $900–$1,600
- Full 10R80 rebuild: $2,400–$3,400
- Remanufactured 10R80 swap: $2,800–$3,800 installed
Important Fluid Note: Mercon ULV Only
The 10R80 requires Mercon ULV (Ultra Low Viscosity) ATF. This is not interchangeable with Mercon V or generic fluids. Using incorrect fluid causes shift quality issues that can be misdiagnosed as mechanical failures. If a shop quotes you a fluid change without specifying Mercon ULV, ask explicitly before approving the service.
Should You Repair or Sell the 2019 F-150?
The 2019 F-150 with a properly maintained 10R80 can last well past 200,000 miles. If the truck is otherwise in good shape and you're looking at a solenoid or calibration issue, repair makes clear sense. Even a full rebuild at $3,000 on a truck worth $35,000+ is a straightforward value calculation. Call us at (312) 452-5637 for a free diagnostic before you make any decisions.
